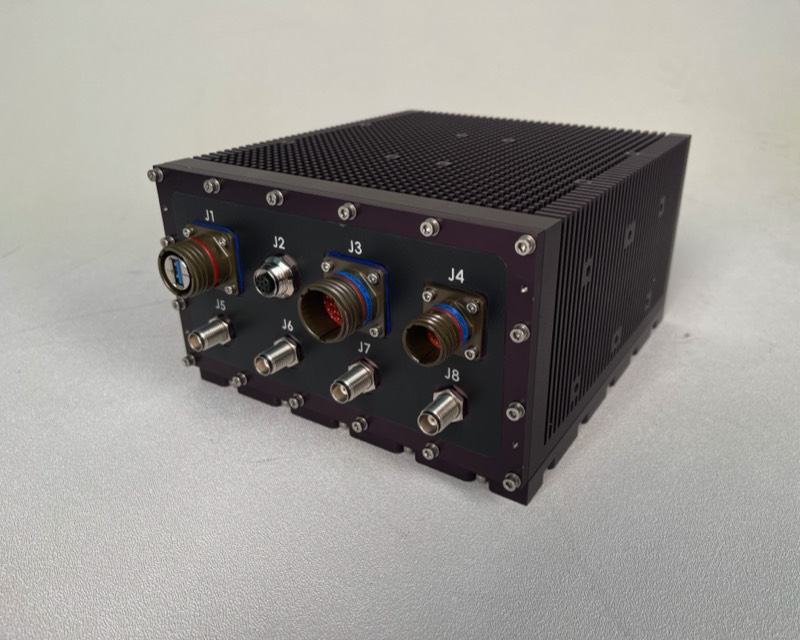

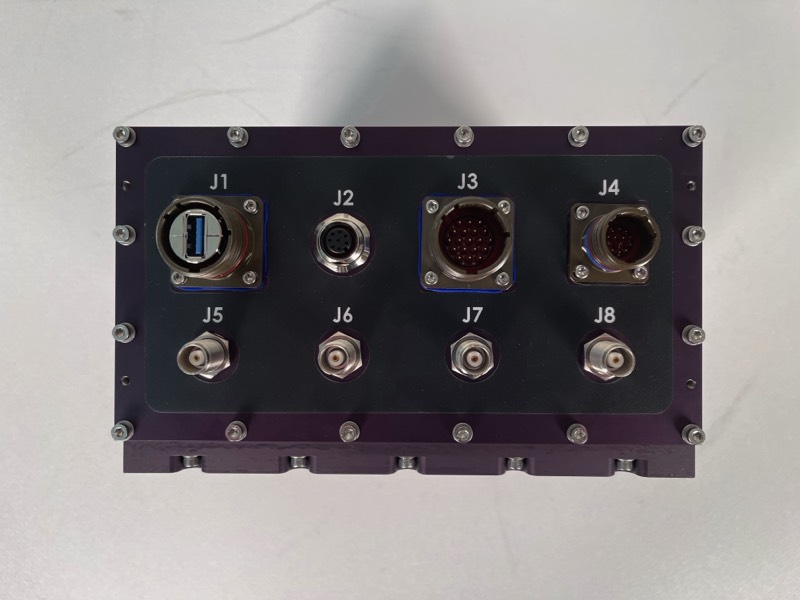

Rugged High Definition-Mission Data Recorder (HD-MDR)


Rigorously tested against high-speed military combatant craft, the HD-MDR provides sea, land, and air systems with a powerful computing system that can operate as a stand-alone MDR or as a part of a larger system to fill the need for quality, reliable, rugged missions video requirements.

Azimuth's HD-MDR integrates a multi-channel digital video recorder with platform meta-data logging capability to implement a highly capable all-in-one mission data recorder. Based on a MIL-STD-810F certified rugged and sealed computing core, the MDR offers flexibility in video and data capture, storage and operation. The MDR operates stand-alone or is easily integrated into larger platform command and control systems. Built-in Ethernet and CAN interfaces enable metadata capture from navigation, IP cameras, environmental-triggers and engine sensors.

Designed specifically for mobile applications where ruggedness, remote-control, data access and ease-of-integration is paramount, the MDR offers a non-developmental foundation with open-interfaces. Alternately, the MDR can be delivered as a turn-key standalone device requiring the least installation effort. The MDR is engineered and manufactured entirely in the USA by Azimuth. All mechanical, data, and electrical interfaces are fully specified and presented without license or royalties. Additionally, Azimuth offers design and integration assistance if desired.


Specifications
  • Four HD-SDI inputs at 30 fps, 1080p
  • Stereo AAC through HD-SDI
  • KLV Metadata capture through HD-SDI
  • Four additional NTSC/PAL/RS-170 composite inputs at 30 fps, D1 resolution (720 x 480)
  • Encoding: H.264/MPEG-4
  • Simultaneous recording and streaming video
  • Four Composite Zero Latency Video Outputs
  • Internal Composite Video Matrix Switch
  • Multi-Video, Multi-frame Snapshot Capture
  • Voltage: 9-36 VDC
  • Power consumption: 36 W
  • Size: 9.7*7.9*4.8 inches
  • Weight: 13.5 lbs
  • Storage 2 TB internal SSD, External USB Drive, External NAS
  • Internal battery backed real time clock, GPS synchronized
  • Download interface: Gigabit Ethernet port
  • Enclosure: O-ring gasket sealed, CNC milled, anodized and iridited, aluminum

Designed to meet:
  • Temperature: -20C to 55C (passively cooled)
  • Shock: MIL-STD-810F (Method 516.5)
  • Thermal: MIL-STD-810F (Method 503.4 )
  • Vibration: MIL-STD-810F (Method 514.5)

View HD MDR Brochure


Stacks Image 17
Stacks Image 19
Stacks Image 21

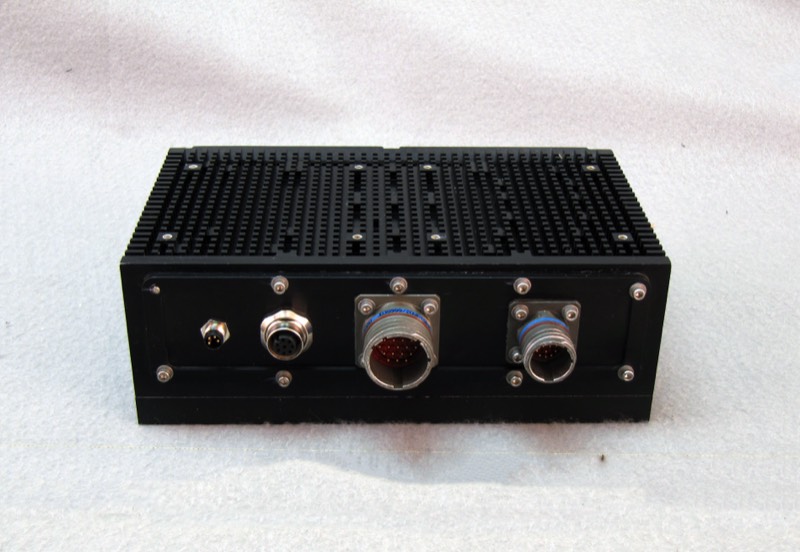

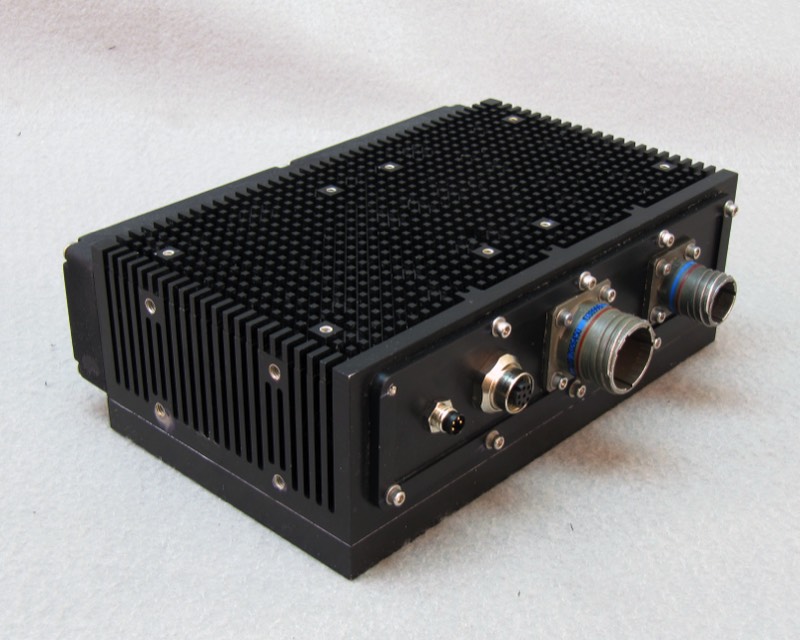

Mission Data Recorder (MDR)

Azimuth's MDR integrates a multi-channel digital video recorder with platform meta-data logging capability to implement a highly capable all-in-one mission data recorder. Based on a MIL-STD-810f certified rugged and sealed computing core, the MDR offers flexibility in video and data capture, storage and operation. The MDR operates stand-alone or is easily integrated into larger platform command and control systems. Built-in Ethernet and CAN interfaces enable metadata capture from navigation, IP cameras, environmental-triggers and engine sensors.

Designed specifically for mobile applications where ruggedness, remote-control, data access and ease-of-integration is paramount, the MDR offers a non-developmental foundation with open-interfaces. Alternately, the MDR can be delivered as a turn-key standalone device requiring the least installation effort. The MDR is engineered and manufactured entirely in the USA by Azimuth. All mechanical, data, and electrical interfaces are fully specified and presented without license or royalties. Additionally, Azimuth offers design and integration assistance if desired.


Specifications
  • Four channel composite NTSC input w/1 channel line-level audio (integral matrix)
  • Frame rate: 30 fps, Resolution: up to D1 (720*480)
  • Encoding: MPEG 1,2,4
  • Voltage: 9-36 VDC
  • Power consumption: 24 W
  • Size: 7.88*6.88*3.2 inches
  • Storage 120GB internal SSD (expandable, NAS optional)
  • Bitrate: 4Mb/s (per channel)

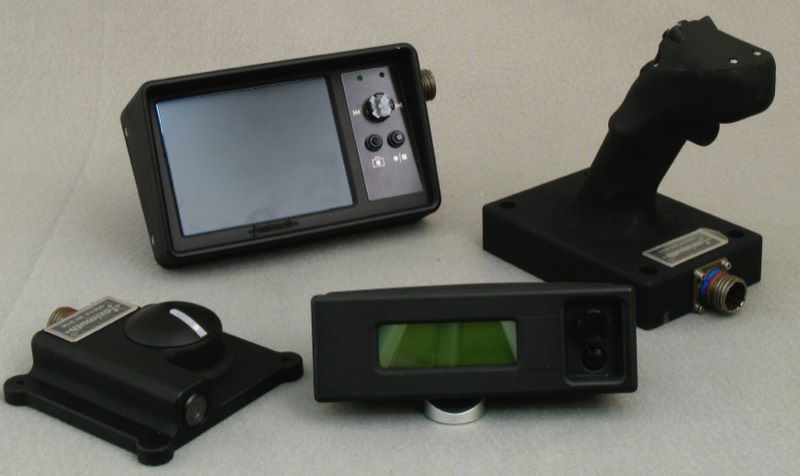

  • Control interface with GPS pendant (metadata stored)
  • Auxiliary CAN interface
  • Internal clock, GPS synchronized (RTC optional)
  • Download interface : Ethernet port
  • Weight: 6 lb
  • Enclosure: O-ring gasket sealed, CNC milled, anodized and Iridited, aluminum

Designed, tested and meets:
  • Temperature: -20C to 55C (passively cooled)
  • Shock: MIL-STD-810F (Method 516.5)
  • Thermal: MIL-STD-810F (Method 503.4 )
  • Vibration: MIL-STD-810F (Method 514.5)

View DVR Suite Brochure


Stacks Image 30
Stacks Image 32

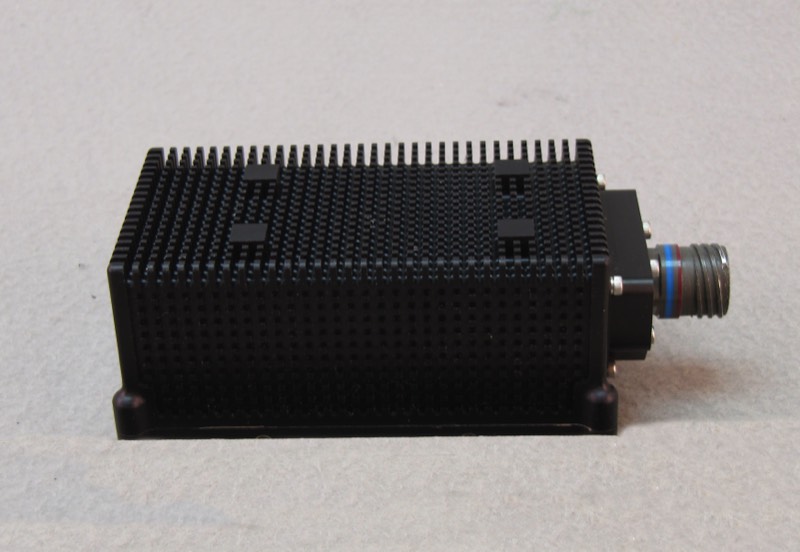

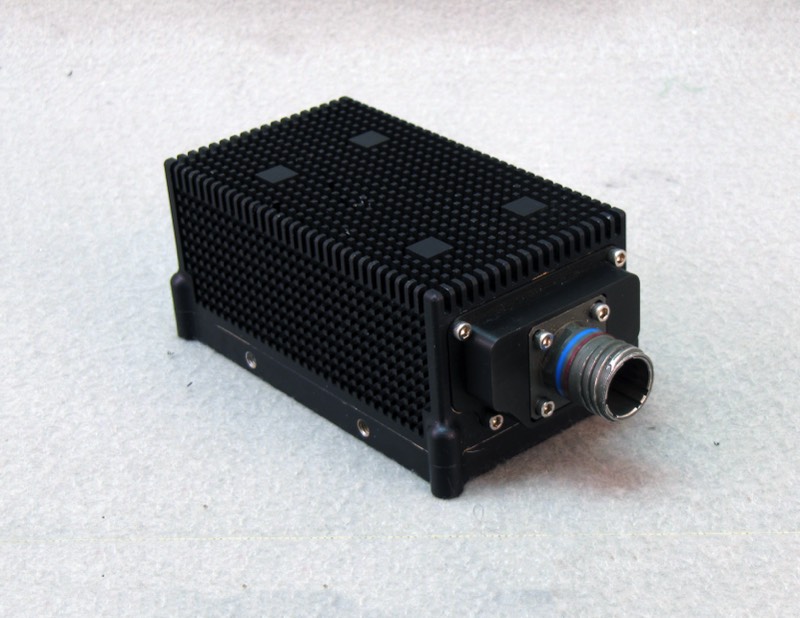

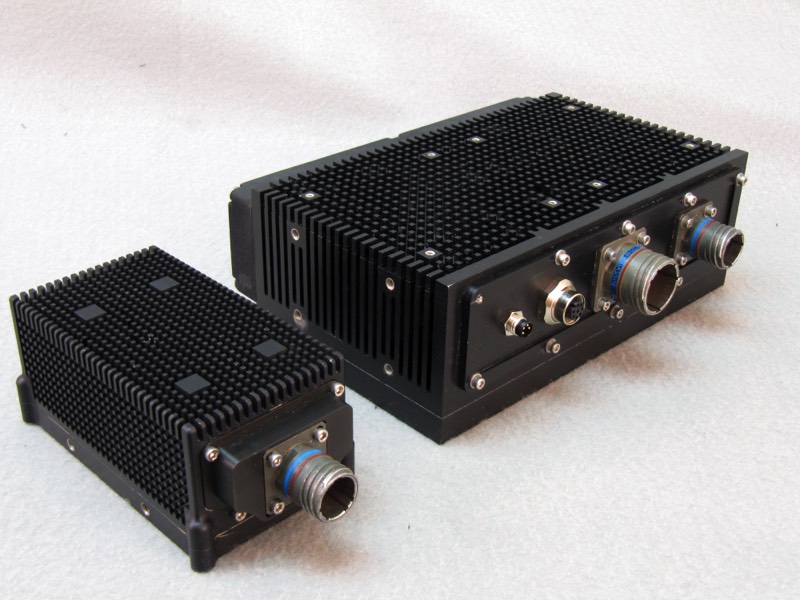

Mission Data Recorder (MDR) Single Channel


Specifications
  • Single channel composite NTSC input w/1 channel line-level audio
  • Integrated CAN (Controller Area Network) interface
  • Frame rate : 30 fps, Resolution: D1 (720*480)
  • Encoding: MPEG4
  • Voltage: 9-36 VDC
  • Power consumption: 12 W
  • Size: 6.5*3*2.25 inches
  • Storage 160GB SSD
  • Bitrate: 4Mb/s (per channel)
  • Control interface with GPS pendant (metadata stored)
  • Internal clock, GPS synchronized (RTC optional)
  • Expansion port : USB 2.0
  • Weight: 1.6lb (approx)
  • Enclosure: O-ring gasket sealed, CNC milled, anodized and Iridited, aluminum
Designed, tested and meets:
  • Temperature: -20C to 55C (passively cooled)
  • Shock: MIL-STD-810F (Method 516.5)
  • Thermal: MIL-STD-810F (Method 503.4 )
  • Vibration: MIL-STD-810F (Method 514.5)

View DVR Suite Brochure


Stacks Image 44
Stacks Image 46
Stacks Image 48
Stacks Image 50

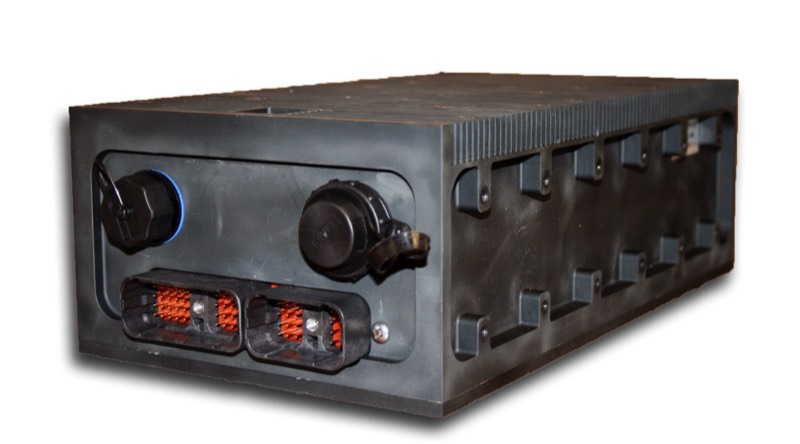

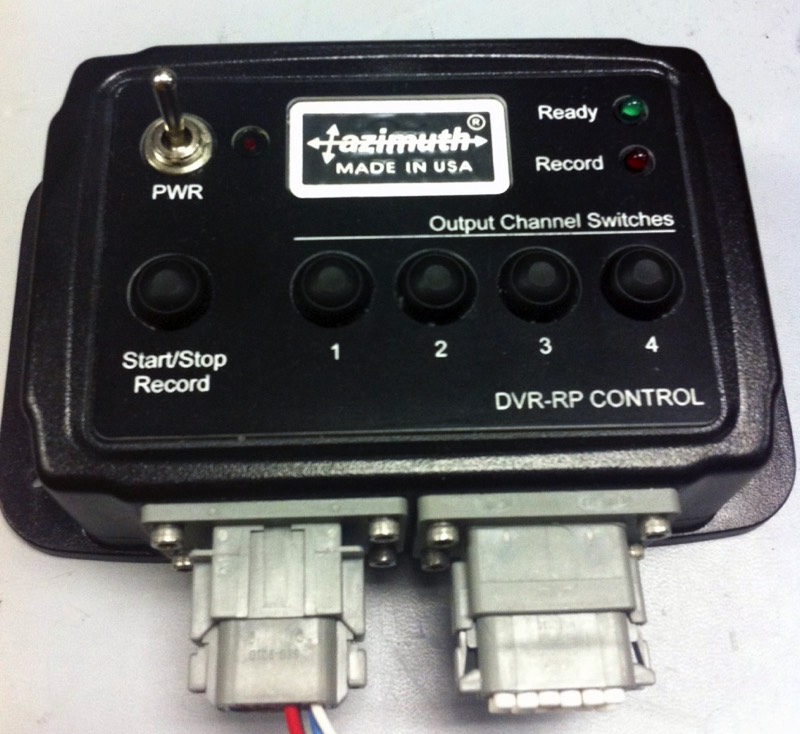

Digital Video Recorder Rugged Programmable (DVR-RP)

Rigorously tested against high-speed military combatant craft, the DVR-RP provides sea, land, and air systems with a powerful video management and data storage system. DVR-RP can operate as a stand-alone video management or data storage system. DVR-RP can be part of a larger system to fill the need for high quality, reliable video and data management.

Engineered around low-power microprocessor technology, DVR-RP is a compact, lightweight, and transportable system. Mated to signal conditioned power and isolation circuitry, DVR-RP offers a low power consumption with a wide input power range. DVR-RP is easily adapted to virtually any mobile air, sea, or land platform.

DVR-RP provides system developers, integrators, and operators with an easy-to-use and easily installed solution to mobile data storage, retrieval and management challenges.

Specifications
  • IP67 Rated, MIL-STD 810F
  • 14"L x 7.875"W x 4.625"H
  • 13.2 lbs
  • CNC machined aluminum, anodized, Iridited
  • O-ring sealed connections for Ethernet, USB, Deutsch
  • Operating voltage: 18VDC to 36VDC
  • Power Consumption: 24VDC 18W
  • Temperature: -20C to 70C

View DVR Suite Brochure
